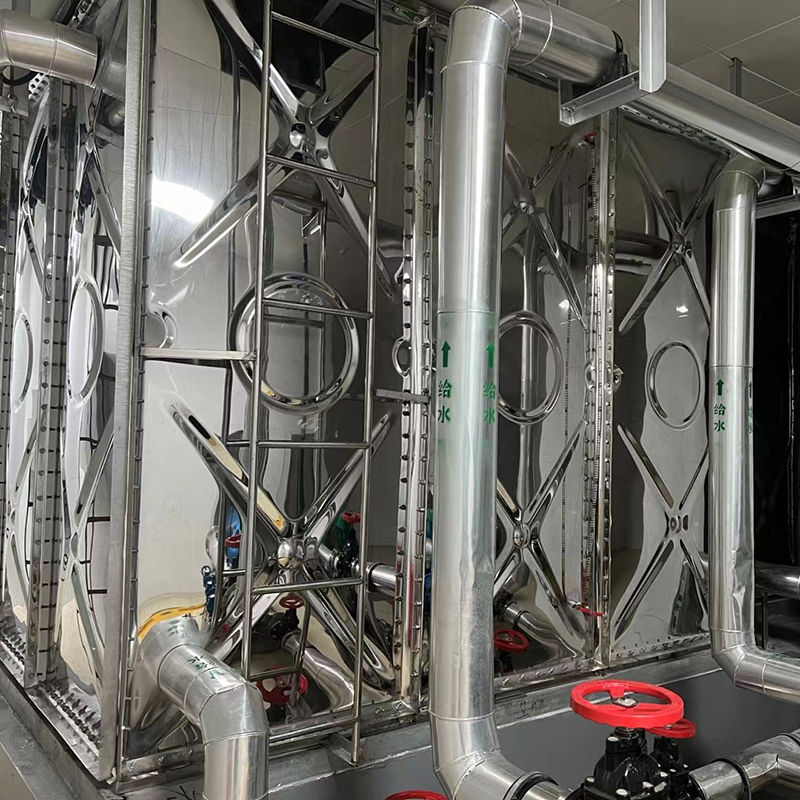

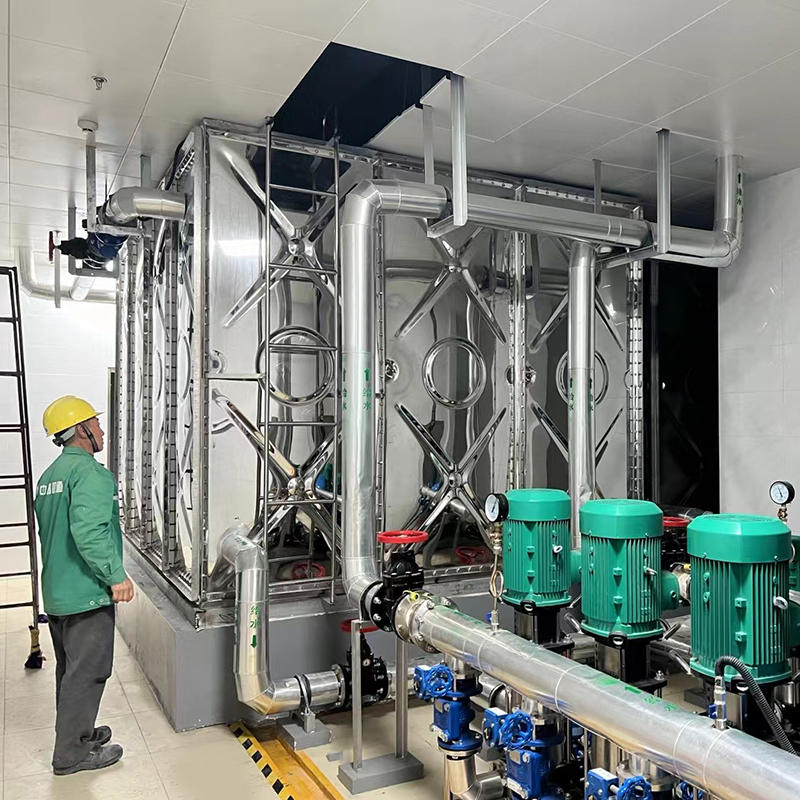

Stainless Steel Assembly Bolted Type Sectional Water Tank

1. Core Advantages and Performance Parameters:

Material and Structure
Stainless Steel Plates: Made of food-grade SUS304/SUS316L stainless steel (thickness 2.0-4.0mm).
Modular Design: Standard plate sizes are 1m×1m and 1m×0.5m. Bolted together, it supports flexible configurations with volumes ranging from 0.125m³ to 5000m³.
Sealing Technology: Silicone strips sandwiched between plates, combined with non-toxic sealant, provide dual protection, resulting in a leakage rate of less than 0.1%.

Performance
Corrosion Resistance: No welded joints eliminate the risk of intergranular corrosion, resulting in a service life of over 40 years.
Seismic and Pressure Resistance: Internal stainless steel reinforcement provides a pressure resistance of 0.6-1.6MPa and can withstand earthquakes up to magnitude 8. Environmentally friendly and energy-saving: The panels are recyclable, and the installation process generates no construction waste, meeting green building standards.

2. Application Scenarios and Applicability:

Construction
Domestic Water: Secondary water supply systems for high-rise residential buildings and commercial complexes, with a capacity range of 1-5000 m³.
Fire Protection Systems: Fire water storage tanks require heat-resistant seals.

Agriculture and Public Facilities
Irrigation Systems: Store irrigation water and are compatible with solar, air, and other thermal energy systems.
Hospitals and Schools: Ensure domestic and fire protection water supply, supporting intelligent water quality and level monitoring.

3. Installation and Maintenance Key Points:

Installation Process
Foundation Requirements: Concrete foundation with a height difference of ≤5 mm, with ≥500 mm of clearance around the base.
Assembly Steps: Bottom plate fastening → Side panel assembly → Bolt tightening → Sealing → Hydrostatic test (fill with water and let stand for 2-3 hours; no leakage is considered acceptable).

Maintenance Recommendations
Regular Cleaning: Clean at least 1-2 times per year with a neutral detergent and avoid scratching with hard objects. Water quality monitoring: Do not store acidic (such as hydrochloric acid) or alkaline liquids. If the chloride ion content is too high, choose 316L material.
Structural protection: Do not place heavy objects on top of the water tank. Install flexible joints to prevent pipe vibration.
